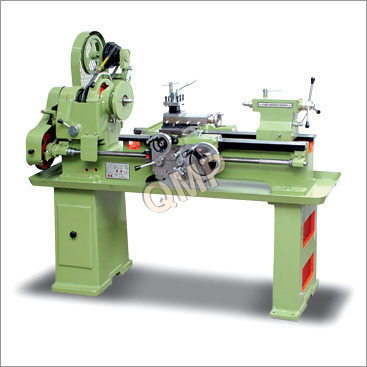

Light Duty Lathe Machine

Light Duty Lathe Machine
Light Duty Lathe Machine
Send Inquiry
Product Code : 01
Brand Name : QUALITY MACHINE PRODUCTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 50000 - 75000 INR
Product Description

Keeping quality as the hallmark of our industry, we are offering impeccable quality range of Light Duty Lathe Machine. Precisely manufactured under the guidance of our engineers using cutting edge technology, these lathe machines are available in different specifications. Immensely used in steel plant, auto-mobile industry and construction industries, these lathe machines are suitable for cutting and shaping the metals. Apart from this, Light Duty Lathe Machine is delivered to our clients within specified time frame.

Features:

  • Impeccable performance
  • Sturdy structure
  • High efficiency

Technical Specifications
Bed Length
1370 / 1600 / 1820 mm
Bed Width
225 mm
Height of Center
165 mm
Admit between Center
660 / 890 / 1135 mm
Swing Over Bed
325 mm
Swing Over Cross Slide
175 mm
Cross Slide Travel
165 mm
Length of Gap in Bed
115 mm
Swing over Gap
510 mm
Compound Slide Travel
115 mm
Spindle Sleeve (Taper Bore)
MT-3
Spindle Bore
40 mm
Taper Bore in Center Sleeve
MT-3
Ram Tavel
120 mm
No. of Speeds
8
Range (RPM)
40 to 950
Load Screw Diameter & Pitch
25.4 mm / 4 TPI
Metric Threads & Range (1 to 6 mm pitch)
13
Inch Threads & Range (2 to 24 TPI)
19
Motor (1440 R.P.M. / 440 V. / AC-3 Phase)
1 H.P. to 1.5 H.P.

Standard Accessories
Steady Rest, Follow, Rest, Face Plate, Chuck Plate, Spindle Sleeve, 2 Nos. Dead Center, Change Gear et Tool Post Spaner, Switch Stand.

Optional Accessories
Norton Gear Box, Flame hardened Bedways, Rear Tool Post, Tapper Tuning Attachment, Electrical Coolant Pump with Fittings, Electric Motor Tre Chuck, Dog Chuck, Reversible Switch, V-Belt, Machine Lamp, Extra Center Height, Extra Spindle Bore.
