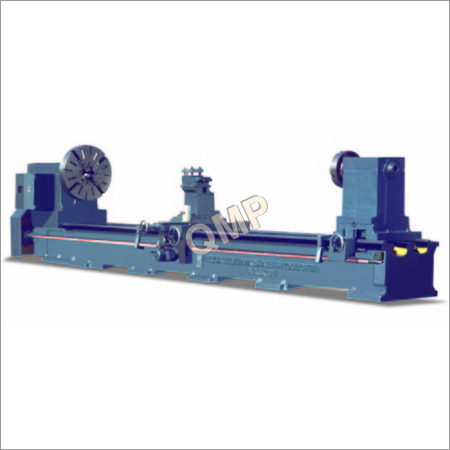

Roll Grinding Lathe Machine

Roll Grinding Lathe Machine
Roll Grinding Lathe Machine
Send Inquiry
Product Code : 10
Brand Name : QUALITY MACHINE PRODUCTS
Product Description

For our respected clients in the industry, we manufacture and export a wide range of Roll Grinding Lathe Machine.  We procure certified quality metals from the trusted vendors for manufacturing these lathe machines in accordance with industrial standards. Ideal for sliding, surfacing and screw cutting operation, these machines are immensely used in automobile, engineering, electrical industries. Our Roll Grinding Lathe Machine is rigorously checked on different parameters prior to supply in the market.

Features:

  • Easy to use
  • Sturdy structure
  • Impeccable efficiency

Technical Specifications
Bed Length
2000to 12000 mm
Bed With
750
Height of Center
600 to 750 mm
Admit Between Center
200 to 10100 mm
Swing Over Bed
1200 to 1500 mm
Swing Over Cross Slide
850 to 1150 mm
Cross Slide Travel
600 to 750 mm
Length of Gap in Bed
300 mm
Swing over Gap
1700 to 2000 mm
Compound Slide Travel
200 mm
Spindle Sleeve (Taper Bore)
MT-6
Spindle Bore
100 to 300 mm
Taper Bore in Center Sleeve
MT-6
Ram Travel
250 mm
No. of Speeds
8
Range (RPM)
20 to 225
Lead Screw Diameter & Pitch
50 mm / 2TPI
Metric Threads & Range (1 to 6 mm pitch)
13
Inch Threads & Range (2 to 24 TPI)
19
Motor (1440 R.P.M. / 440V. / AC-3 Phase)
10 H.P. to 15 H.P.

Standard Accessories
Steady Rest, Follow, Rest, Face Plate, Chuck Plate, Spindle Sleeve, 2 Nos. Dead Center, Change Gear et Tool Post Spaner, Switch Stand.

Optional Accessories
Norton Gear Box, Flame hardened Bedways, Rear Tool Post, Tapper Tuning Attachment, Electrical Coolant Pump with Fittings, Electric Motor Tre Chuck, Dog Chuck, Reversible Switch, V-Belt, Machine Lamp, Extra Center Height, Extra Spindle Bore.
Trade Information
  • Payment Terms
  • Others, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque, Cash in Advance (CID)
  • Supply Ability
  • As per requirement Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
