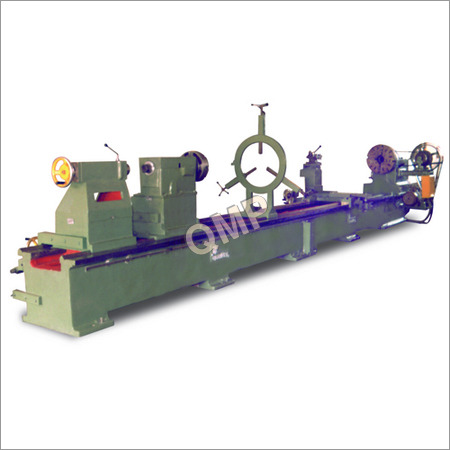

Roll Turning Lathe Machine

Roll Turning Lathe Machine
Roll Turning Lathe Machine
Send Inquiry
Product Code : 09
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Description

Holding immense knowledge in the concerned domain, we are offering our clients superior quality of Roll Turning Lathe Machine. These lathe machines are manufactured at our high-tech manufacturing unit employing cutting-edge technology. Available in different technical configurations, these lathe machines are immensely used in varied industries for sliding, surfacing and screw cutting operation. We duly check Roll Turning Lathe Machine on varied quality parameters before supplying to clients.


  • Rust proof finish
  • Excellent durability
  • Easy to operate

Technical Specifications
Bed Length
3000to 12000 mm
Bed With
750 to 1500 mm
Height of Center
750 to 1500 mm
Admit Between Center
500 to 10000 mm
Swing Over Bed
1500 to 3000 mm
Swing Over Cross Slide
1150 to 2000 mm
Cross Slide Travel
750 to 1500 mm
Length of Gap in Bed
450 mm
Swing over Gap
2000 to 3600 mm
Compound Slide Travel
250 mm
Spindle Sleeve (Taper Bore)
Spindle Bore
100 to 300 mm
Taper Bore in Center Sleeve
Ram Tabvel
300 mm
No. of Speeds
Range (RPM)
15 to 200
Lead Screw Diameter & Pitch
50 mm / 2TPI
Metric Threads & Range (1 to 6 mm pitch)
Inch Threads & Range (2 to 24 TPI)
Motor (1440 R.P.M. / 440V. / AC-3 Phase)
15 H.P. to 20 H.P.

Standard Accessories
Steady Rest, Follow, Rest, Face Plate, Chuck Plate, Spindle Sleeve, 2 Nos. Dead Center, Change Gear et Tool Post Spaner, Switch Stand.

Optional Accessories
Norton Gear Box, Flame hardened Bedways, Rear Tool Post, Tapper Tuning Attachment, Electrical Coolant Pump with Fittings, Electric Motor Tre Chuck, Dog Chuck, Reversible Switch, V-Belt, Machine Lamp, Extra Center Height, Extra Spindle Bore.
Trade Information
  • Payment Terms
  • Others, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque, Cash in Advance (CID)
  • Supply Ability
  • As per requirement Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
