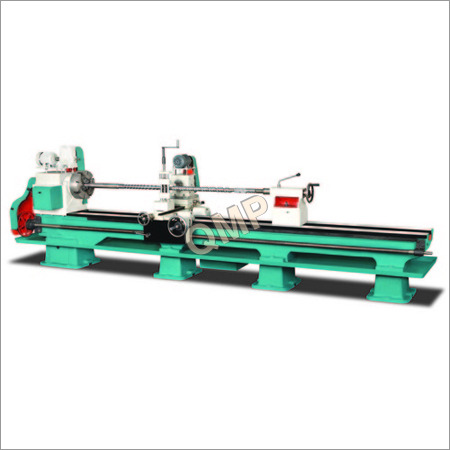

SPM Thread Milling Machine
Our company is enlisted amongst the illustrious names, engaged in manufacturing and exporting Thread Milling Machine. Manufactured under the supervision of our talented experts, these milling machines are immensely used for cutting long and coarse threads in cutter. Find usage in diverse industrial applications, these milling machines are immensely demanded by varied industries. Furthermore, Thread Milling Machine is delivered to our valuable clients at market leading prices.
High grade finish
- Bed Length 1000 to 10000 mm
- Bed Width 375 / 450 mm Min./Max.
- Job Diameter 20 to 300 mm
- Admit Between Center 300 to 9000 mm
- Spindle Bore 100 mm
- Main Spindle RPM 0.1 to 1 RPM
- Longitudinal Feeds 0.1 to 200 mm
- Main Spindle Motor 3 HP
- Milling Head Capacity 25 HSS to 40 mm
- Carbide Milling Head Speed 30 mtr./min. to 90 mtr./min.
- Milling Head RPM 300 & 500 RPM
- Milling Head Nose ISO-40
- Milling Head Motor 2 HP Min./Max.
- Pitch 20 to 300 mm
- Taper Turning Attachment 300 to 9000 mm
- Spindle Sleeve (Taper Bore) MT-4 / MT-5
- Lead Screw Diameter & Pitch 50 mm / 2TPI
- Number of Multistarts 1440
- Multistarts Accuracy 0.15 degree
- Tail Stock Spindle Diameter 50 / 75 mm
Standard accessories - main spindle motor 3 hp with ac variable frequency drive, cutter head motor 2 hp, steady rest, taper turning device, dog chuck, coolent pump with tank, chuck plate, spindle sleeve, 2 nos. dead center, change gear set for inch & mm, electric panel board.
Optional accessories - true chuck, machine lamp.
